Triaxial Plastic Geogrid

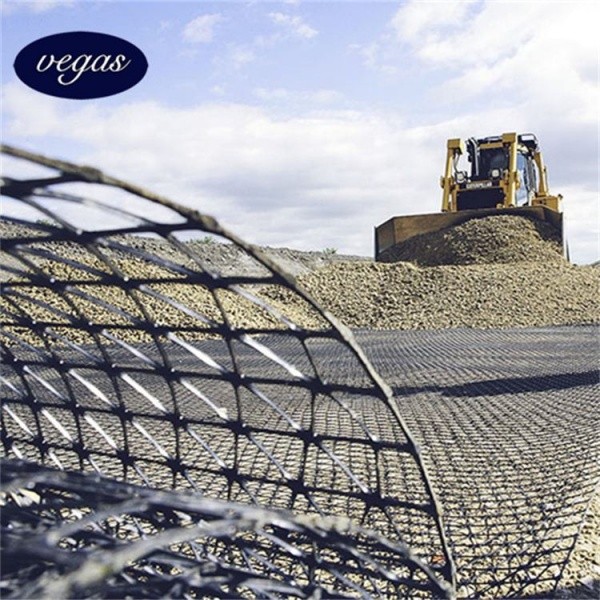

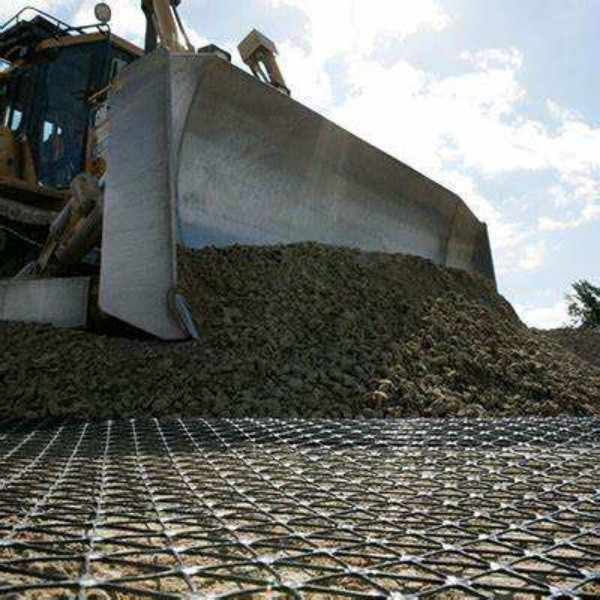

Triaxial geogrid is manufactured from polypropylene,mainly applied in strengthening soft ground of highway,railway,slope protecting projects, airfields etc.It can increase stability and loading capacity of fundus,prolong the project life. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforcement material.

Triaxial PP/Plastics Geogrid Data Sheet
Performance related physical properties of the product	Product Characteristic	Unit	Declared Value	Tolerance
	Radial Secant Stiffness at 0.5% strain1	kN/m	360	-75
	Radial Secant Stiffness Ratio1	---	0.80	-0.15
	Junction Efficiency2	%	100	-10
	Hexagon Pitch3	mm	80	±4
Durability Statement 5,6,7	The minimum working life of the geogrid in natural soils with a pH value between 4 and 9 is assumed to be 100 years in soil temperatures less than 15°C and expected to be 50 years in soil temperatures less than 25°C, when covered within 30 days.
Properties for identification of the product	Radial Secant Stiffness at 2% strain1	kN/m	250	-65
	Hexagon Pitch3	mm	80	±4
	Weight of the product4	kg/m2	0.25	-0.035
