3D Geomat For Slope Protection Factory

Application

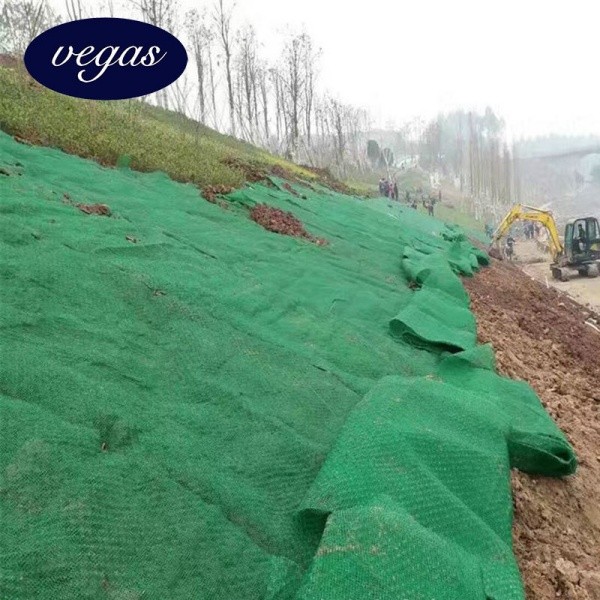

1). It can save embankment from erosion by wind and rain until the turf is generated.

2). It can keep seed distribution evenly on the slope from the wind and rain to be lost.

3). Mat can absorb large amounts of heat energy to enhance geothermal, and promote the seed germination,

extend the growth period of plants.

4). The compound protection layer formed by plants grown together can with stand high water level and washout of flow.

5).It can instead of concrete,asphalt ,stone and so on slope materials. Mainly used in highway, railway, river channel, embankment and other slope surface protection.

Introduction:

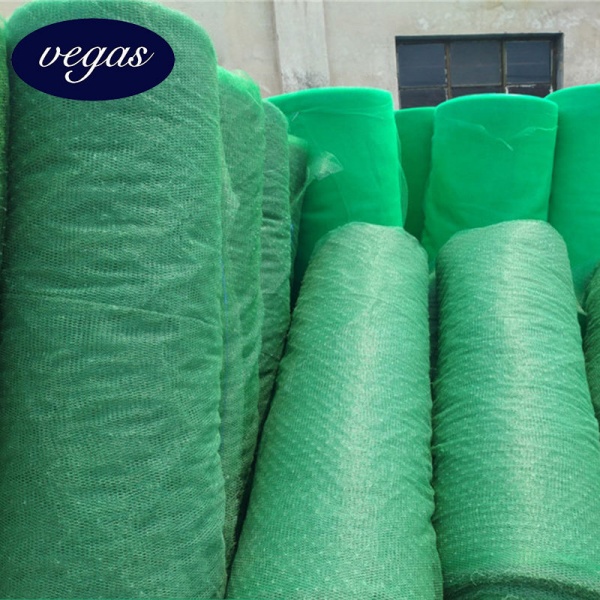

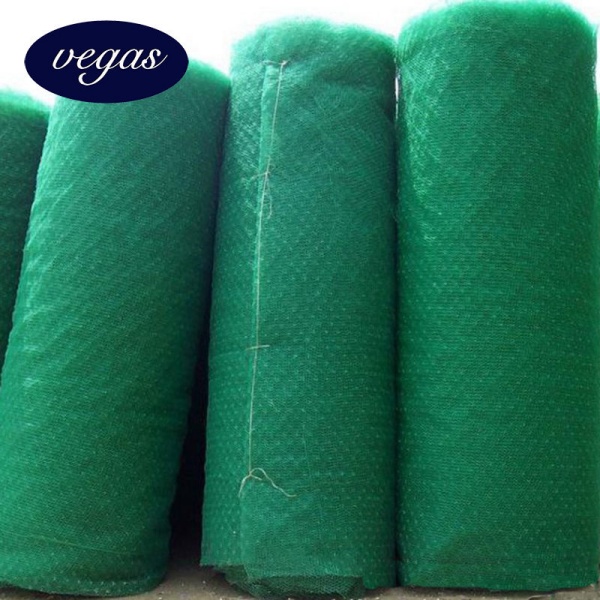

Erosion Control Mat is to be made from Extruded Polypropylene Monofilaments formed into a 3-Dimentional (3D) Geomats, and must be integrated with the Filter Fabric (nonwoven geotextile) on one side

a) Extruded Polypropylene Monofilaments have a mass per unit area of 400/500/600/700g/m2 following EN ISO 9864, and UV Stabilized.

b) The Extruded Polypropylene Monofilaments must form a 3D Pyramid Shaped and have open structure to allow soil and root penetration.

c) Filter Fabric (nonwoven geotextile) must be electro-mechanically integrated / bonded to the Extruded Polypropylene Monofilaments, and UV Stabilized.

d) The base resin for Geomat should be PP homopolymer.

e)The diameter of the monofilament: 0.4 to 0.7 mm.

Our services:

(1)Service:
A. OEM/ODM orders are warmly welcome

B. All of our products have proceeded testing before shipment and we guaranteed the good quality.

(2) Quality Control:

We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.

Not only is stringent internal quality control carried out at Vegas, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.

FAQ

1. who are we?
We are based in Shandong, China, start from 2015,sell to Domestic Market(7.00%),Southeast Asia(55.00%),North America(3.00%),South America(10.00%),Africa(10.00%),Oceania(10.00%),Mid East(3.00%),South Asia(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Geomembrane,Geocell,Geogrid,Geotextile,GCL,Composite drainage geonet

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card;
After-sell service,installation guidance
