Fiberglass Geogrid Factory

Fiberglass Geogrid Factory

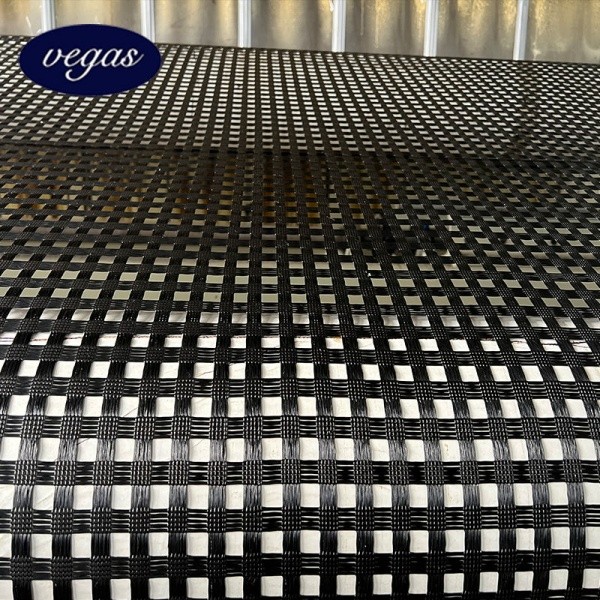

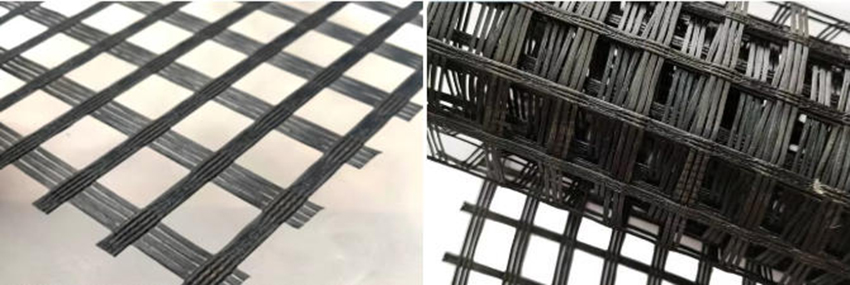

Geotechnological grid of fiberglass

Performance/specification

EGA25-25

EGA30-30

EGA40-40

EGA50-50

EGA80-80

EGA150-150

EGA200-200

Intensity

(KN/M)

longitudinal

25

30

40

50

80

150

200

Crosswiae

25

30

40

50

80

150

200

Break elongation   ratio%

≤4

≤4

≤4

≤4

≤4

≤4

≤4

Grid(mm)

12.7*12.7    25.4*25.4 40*40

Breadth(m)

1-4

1-4

1-4

1-4

1-4

1-4

1-4

Geotechnological grid of fiberglass(self-adhesive fiberglass geogrid)

Performance/specification

EGA40-40

Self-adhesive

EGA50-50

Self-adhesive

EGA60-60

Self-adhesive

EGA80-80

Self-adhesive

EGA100-100

Self-adhesive

EGA120-120

Self-adhesive

Intensity

(KN/M)

longitudinal

40

50

60

80

100

120

Crosswiae

40

50

60

80

100

120

Break elongation   ratio%

≤4

≤4

≤4

≤4

≤4

≤4

Grid(mm)

12.7*12.7        25.4*25.4

Breadth(m)

1-4

1-4

1-4

1-4

1-4

1-4


Application:

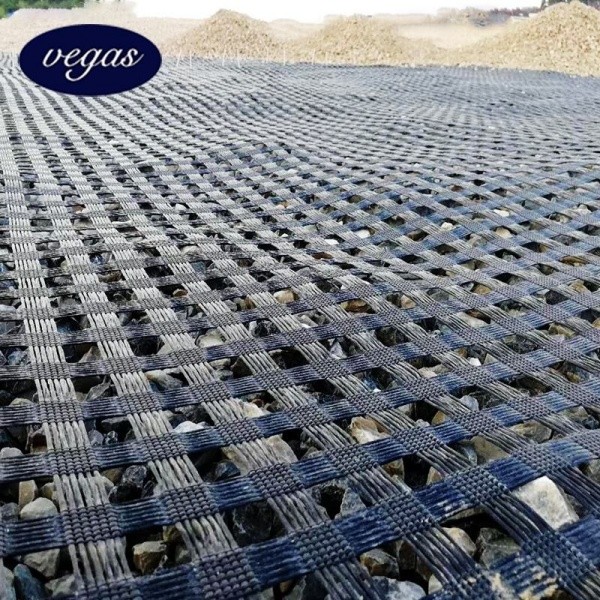

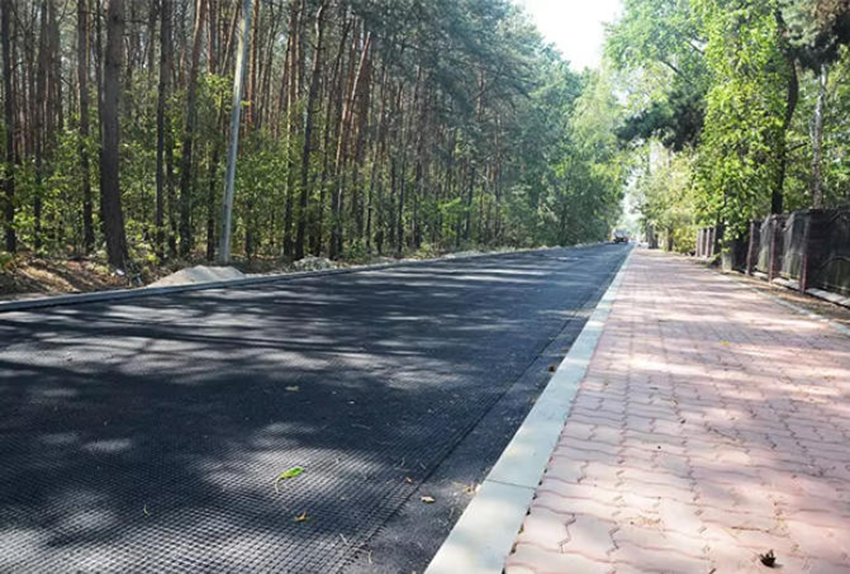

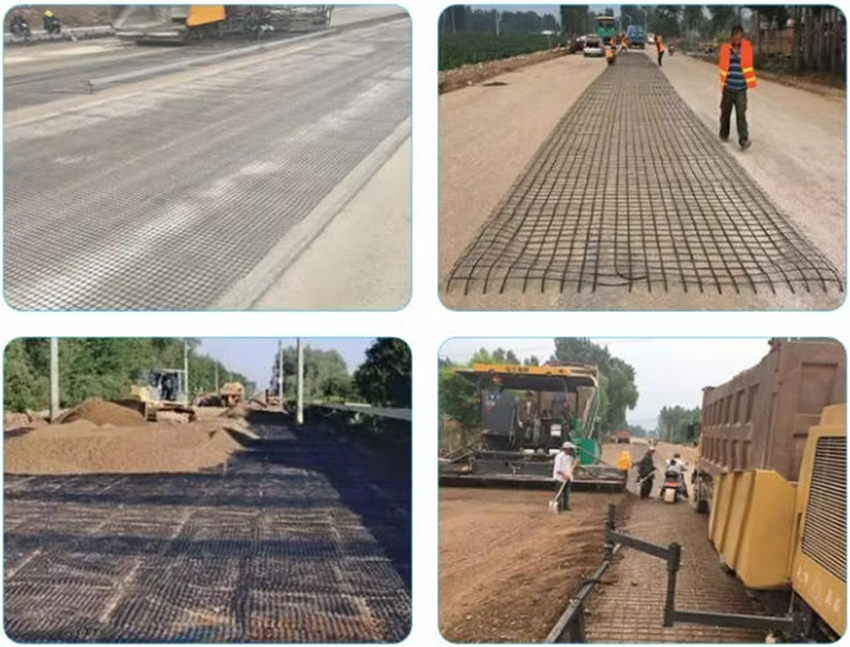

Vegas geogrids focus almost entirely on reinforcement applications, although separation may be a function. The following are examples of a few applications.Slope Reinforcement- embankments over soft soils, extra-steep earthwork slopes, landfill liner systems, and industrial and contaminated land reclamation Base Reinforcement- foundations of roadbeds, parking lots, railroad tracks beds, airports runways, permanent unpaved roads,construction haul roads Wall Reinforcement- retaining walls, sea walls, airport noise barriers, and bridge supports Berm Reinforcement - spillway channels for earthen dams, levees, and waste contaminated ponds, banks for earthen canals and waterways.


FAQ:

1. who are we?

We are based in Shandong, China, start from 2015,sell to Domestic Market(30.00%),Southeast Asia(15.00%),North America(10.00%),South America(10.00%),Africa(10.00%),Oceania(10.00%),Mid East(5.00%),Western Europe(3.00%),Eastern Europe(2.00%),Central America(2.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Geomembrane,Geocell,Geogrid,Geotextile

4. why should you buy from us not from other suppliers?

a large and professional geosynthetic products manufacturer for many years;

the main products are Geogrid,HDPE / LDPE Geomembrane, Plastic Grass Grids, Woven/nonwoven Geotextile, Drainage Board,HDPE geocell

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card;

Language Spoken:null
